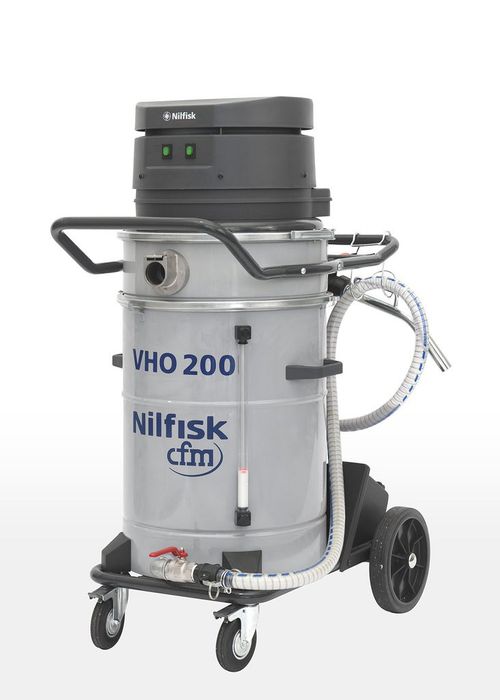

VHO200 X Vacuum for Liquids

Stock Code:
N/4010400040
POA

Description

Model VHO 200 is a powerful vacuum for liquids with diverting valve for an easy and fast container discharge. A metal basket for the metal chips recovery is also available as well as different kinds of nylon filters, letting the user have different levels of filtration and then re-use the sucked materials (both liquids and solids). The container emptying is performed manually by a ball valve or by differential pressure with discharge accessories kit.

VHO 200 by simply moving a lever is able to blow and then discharge the liquids previously sucked. 2,4 kW (3,2 HP) power rating obtained with two single-phase by-pass motors are placed within a dark grey solid polypropylene cover and connected to the container by a self-centering metal band. Once the metal band is released the motor head is free to be tilted. In order to protect the motor head the VHO 200 safety measures are very high: both a visual cut-off system and a float shut-off system are fitted up in the vacuum as well as a double filter pad and an absorbent pad are always present. A metal basket for the metal chips recovery and float shut-off system integrated is also available as well as different kinds of nylon filters, letting the user have different levels of filtration and then re-use the sucked materials (both liquids and solids). Oil mist can be filtered as well by a dedicated filter positioned under the motor head. The exhaust on the bottom of the container allows to drain out all the liquids avoiding few liters remaining after the emptying. The container is easily removable to be perfectly cleaned up. Due to all these features, this machine results usable in many different sectors: ideal for the oil recovery and recycling from tooling machines, in its stainless steel version (with the exception of the motor-head and the trolley) it’s also suitable for the chemical&pharmaceutical and food companies whenever there is the need to suck liquids and getting different filtration levels. Dedicated accessory kits for different sectors are available as well.

  • High tank capacity/dimensions ratio
  • Solid and slim design
  • Hinged motor-head
  • Well-protected motor head from liquids seepage
  • Wide range of filtration options
  • Very quiet
  • Versatile: suitable for different sectors
  • Diverting valve for an easy and fast liquids discharge
  • Stainless steel version available
  • Specific filter for oil mist available
